storage bins

Quality durability economy



CORRUGATED STEEL BINS



We build our heavy-duty corrugated steel bins to last a Lifetime. We use quality steel to grade ASTM A-36. Our Corrugated Steel Bins are built to order and can be customized infinitely.  We are able to deliver on short notice.







Corrugated steel bins

Our corrugated steel bins come in 3 standard sizes and with choice of having doors on top or sides . Side doors, Drop Gates, can be half drop or full drop. We offer our standard corrugated steel bins in load bearing capacties ranging from 250 kgs to 2500 kgs. Higher payload Bins in larger dimensions are custom fabrications.

AN OVERVIEW

We offer Several  Standard Sizes that are available for quick delivery. From 600 mm x 600 mm to 1200 mm  x 1200 mm and many variations in between. Standard heights include 600 mm overall height with 500 mm usable and 750 mm overall height with 600 mm usable height. We do Custom Sizes. We have the material ready to go, simply pick a size that best meets your needs and we can manufacture it for you.

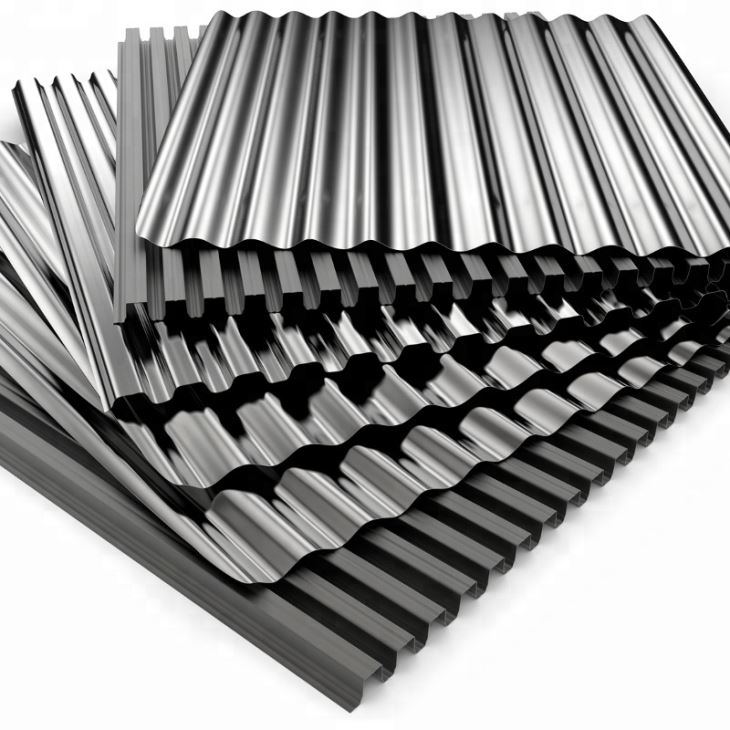

The corrugations in our steel make the bins stronger than if we used flat steel sides. Our Stackable Steel Bins are made from 1.5 mm to 2.5 mm corrugated steel sides for strength and rigidity. The bins have 2 mm sheet steel bottom panels (3 mm bottoms on larger units), heavy duty 50 x 50 x 3 or 4 mm thick steel angle iron corner posts, 4 mm to 6 mm Stacking Targets on top and 100 mm legs that allow for stacking on the bottom of the bin and forks entry.

CONSTRUCTION DETAILS

AVAILABLE FINISHES

RHINO Corrugated Steel Bins are Available in Your choice of standard colors including Off White, Blue, Green, Black, Cat Yellow and Gray Industrial Enamel Paint Finish that is applied inside and out. The only place we do not paint is the underside of the container.

You can ask for Polyester Powder Coated Finish also if your bins are to be used in shopping malls or public display areas.

For  Highly Corrosive Environments we offer Hot Dip Galvanized finish or Galvanized and Painted finish to your preferences. Galvanizing is carried out according to BS 729.

corrugated bins, salient features...

RHINO Stackable Corrugated steel Bins are bulk containers ideal for storage and shipping of heavy parts. They protect your valuable parts in transit. The all welded design is perfect for the toughest material handling applications.

The Stacking Feet allow you to easily and securely stack them which helps increase storage density  on floor space.

 Our stackable Corrugated Bins are popular for storing scrap metal and recyclables, assembly line components, loose merchandise in stores, heavy hardware and machine parts etc. These heavy-duty steel bins work in almost any industrial environment

Corrugated Steel Bins Features, Options & Accessories:

Solid Sides – 4 wall container. Our most popular model (See attached pictures).

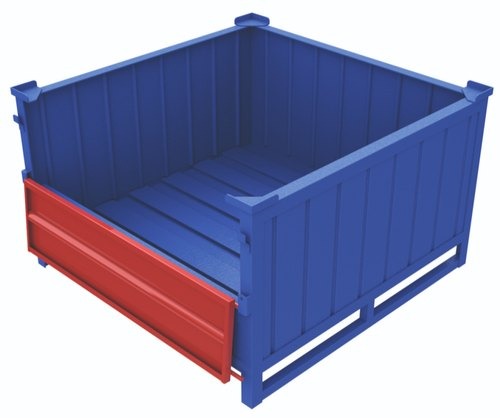

Half Drop Gate – Drop the gate for easy ergonomic access to stored items. Close the gate to help contain products in storage and transit.

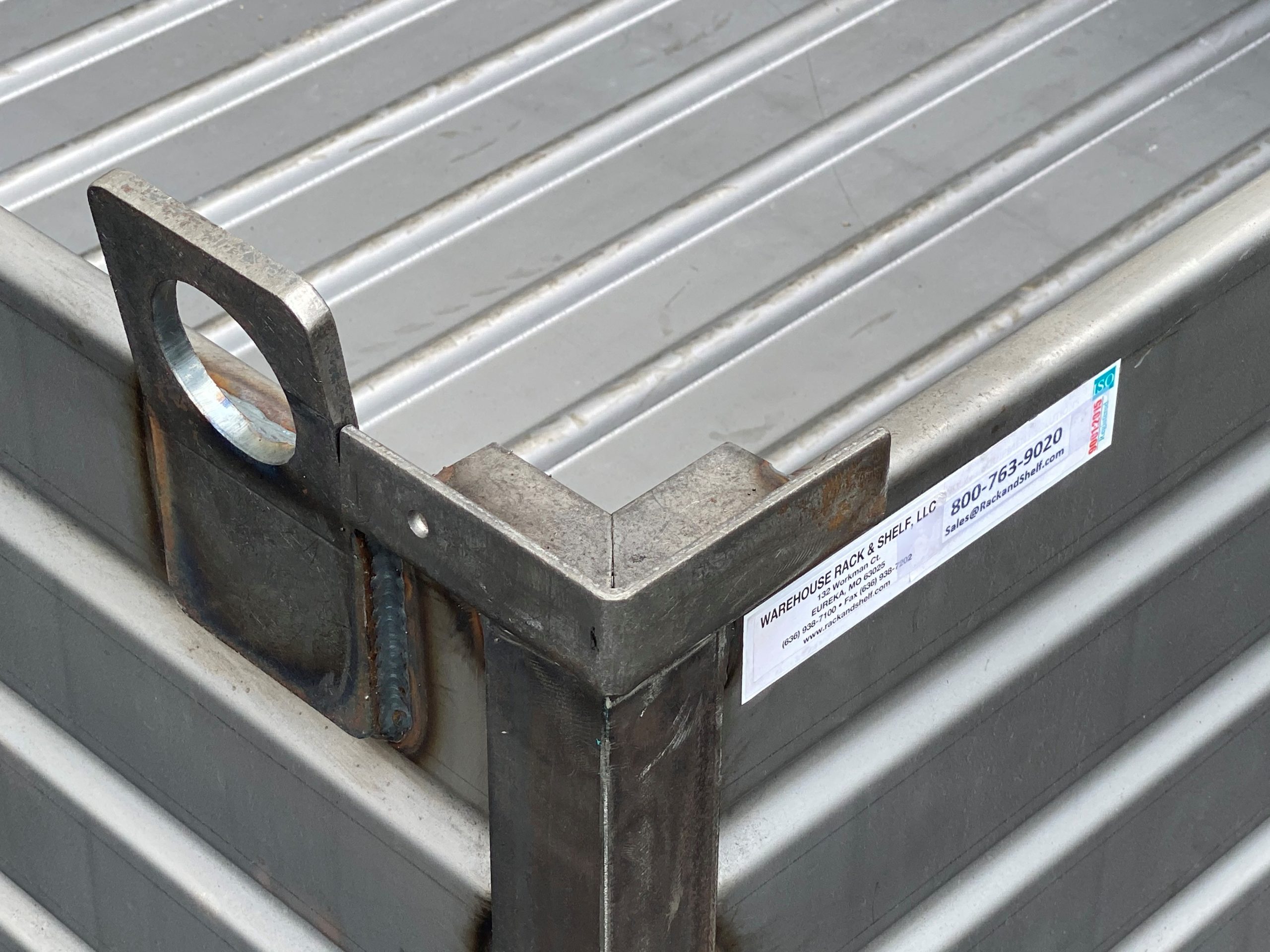

Lifting Lugs – Set of (4) – 8-10 mm thick x 100 x 175 mm lifting lugs with 50 mm diameter hole that are welded on corners of the Bins (on the widesr side). Allows you to lift the containers with overhead crane.

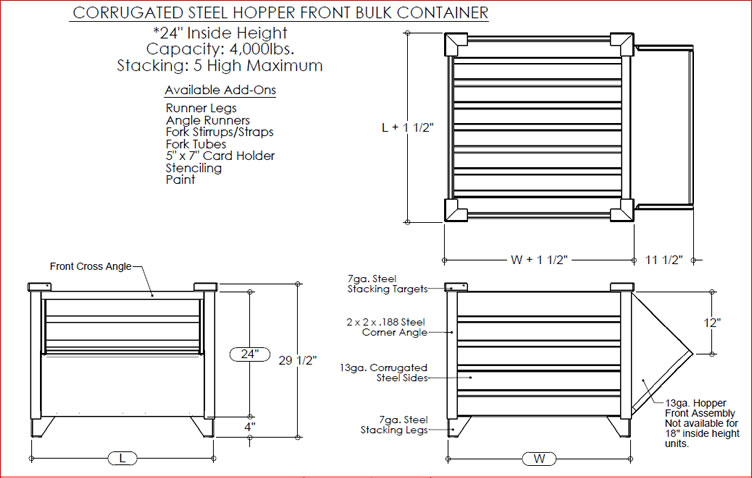

Open Hopper Front – The open front is ideal for picking products. It provides easy ergonomic access to stored goods. Ideal for parts storage and picking efficiency.

 2 Way Fork Tubes – Set of 2 fork tunnels go the whole length of the container. 3″ x 6″ x 10 GA fork openings on widest side of the container. Great for when you have rotating forks and need to dump contents of container.

Angle Runners – Set of (2) – 3/16″ x 2″ x 2″ steel angle runners welded on the narrowest side go the length of the container.  These runners are flush to the floor. They help prevent damage to the feet. They also help evenly distribute weight when stored on pallet rack decking and prevent point loads of feet on decking.

CAUTION: For Food Products we recommend you use a Stainless Steel or Galvanized Bin

NOTES

  1. 12ga bottoms are only used in 49.5”W x 49.5”L, 43.5”W x 49.5”L, 43.5”W x 43.5”L and 36.5”W x 49.5”L containers.
  2. Industrial enamel finish is applied direct to metal through-out but not including underside.
  3. I.D. is a nominal dimension as we do not take into account the space that the corrugations or top wrap (rim lip) take up.
  4. Clear dimensions which would be the dimension of an unobstructed cube that would fit inside the container as follows for the above size:
  5. 46.75” x 46.75” x 22.38” clear dims
